HOMEPAGE >> PRODUCTS >> RLEIL ROCKER SWITCH >> RL1 SERIES

RL1-511-C-0-BK/BK-P2
ON-OFF 2P
RL1-512-C-0-BK/BK-P2
ON-ON 3P


SPECIFICATION:
10(4) A 250VAC T85
16(4) A 250VAC T125 1E4
15A 125V/7.5A 250VAC


EXPLANATION OF MODEL NUMBER
R L 1 - 5 -
1 1
- C
- 2
- BK/ B K
- P 1
-S

|
|
|
|
|
|

Function
Cap Type
Cap Printing
Cap/Housing Color
Terminal
Panel hole size

Function
11
ON-OFF 2P
12
ON-ON 3P
13
ON-OFF-ON 3P
11(ON) (ON)-OFF 2P
11(OFF) (ON)-OFF 2P
12(ON) (ON)-ON 2P

13(ON)

(ON)-OFF-ON 3P
11/N ON-OFF 3P W/Lamp
Cap Type
A
Flat
C
Soft Line
Cap/Housing
Color
BK
Black
WT
White
RE
Red
OR
Orange
GR
Green
BL
Blue
GE Grey
Terminal

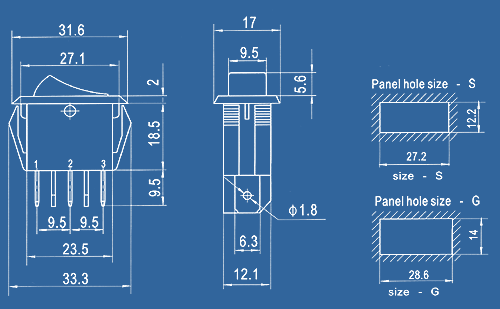

Panel hole size
S
Size-S
G
Size-G
Cap Printing
0
None
4
8
1
5
16
2
6
38
3
7
